Indoor Elevator equipped with a Small Machine Room, Wall Mirror, Waterproof Surface, 1150 KG Capacity, holds 15 Persons, 1 m/s Speed
(483 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Indoor elevator equipped with a small machine room with wooden cladding, vinyl flooring, 15-passenger capacity, 1150 KG load capacity, 1 m/s speed, designed to provide a quiet and safe environment with easy accessibility, operates with technologies that reduce energy consumption.
Product description

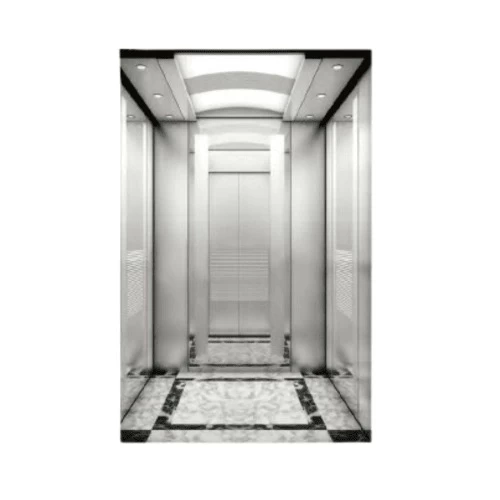

Passenger elevator with a small machine room, made from high-quality materials with a clean and elegant design. The ceiling has a central stainless steel arch with soft lighting on both sides, giving a calm and open look. The cabin walls are made of etched mirror panels with a fine finish, adding style and brightness. The floor is PVC, strong and easy to clean. This model comes with no handrail, which makes the space feel more open and simple. Perfect for residential or office buildings that want a modern and minimal look. Available in different designs and specs to suit all needs.
- Ceiling material: Stainless steel
- Wall material: Mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 1150 KG
- Number of passengers: 15 persons
- Speed: 1 m/s
- Car dimensions: 1900 × 1400 mm
- Door opening dimensions: 1000 × 2100 mm
- Shaft dimensions: 2500 × 2100 mm
- Machine room dimensions: 2500 × 2100 mm
- Pit depth: 1400 mm
- Top floor height: 4600 mm
- Motor power: 7.8 kW
- Reaction force R1: 55600 N
- Reaction force R2: 36300 N
- Reaction force R3: 7800 N
- Load force P1: 98000 N
- Load force P2: 75000 N
- Brand: FUJI
- Design code: JG-K02
- Model: TKJ1150/1
