Passenger Elevator equipped with Small Machine Room, Etched Titanium Ceiling, Marble or, PVC Flooring,18-Person Capacity, 1350 KG Load, Operating Speed 1.5m/s

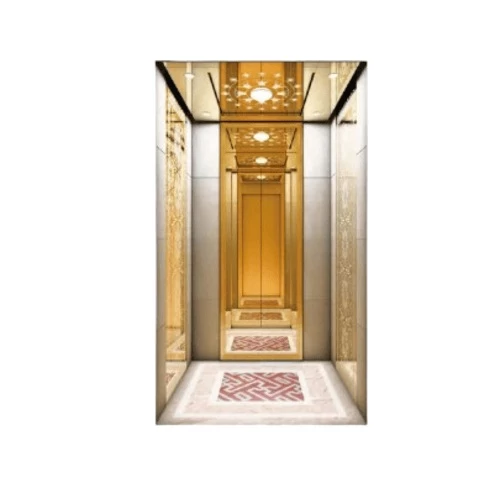

Passenger elevator with a small machine room, designed with a mix of elegant materials and everyday practicality. The ceiling features an etched titanium gold mirror with a central ceiling lamp and LED lights on all four sides, providing balanced and soft lighting inside the cabin. The walls include marble or imitation marble finishes, with etched titanium mirror details for a luxurious feel. The cabin has no handrail, which gives it a more open and clean look. The floor is made of decorative PVC, easy to clean and ideal for daily use. The elevator includes all standard safety features such as door sensors, alarm system, emergency lighting, and automatic safety brakes. This design is perfect for residential or hospitality buildings that want a combination of premium look, safety, and efficient performance. Available in various styles to fit different project needs.

• Ceiling material: Etched titanium gold mirror
• Wall material: Marble or imitation marble grain, titanium
• plated stainless steel mirror
• Handrail material: None
• Floor material: PVC
• Color: Gold
• Load capacity: 1350 KG
• Number of passengers: 18 persons
• Speed: 1.5m/s
• Car dimensions: 1900 × 1600 mm
• Door opening dimensions: 1100 × 2100 mm
• Shaft dimensions: 2500 × 2300 mm
• Machine room dimensions: 2500 × 2300 mm
• Pit depth: 1500 mm
• Top floor height: 4700 mm
• Motor power:13.8 kW
• Reaction force R1:67200 N
• Reaction force R2: 43400 N
• Reaction force R3: 8700 N
• Load force P1:114000 N
• Load force P2: 87000 N
• Brand: FUJI
• Design code: JG-K05
• Model: TKJ1350/1.5
