Passenger Elevator equipped with a Small Machine Room, Wall Mirror, PVC Flooring, 1250 KG Capacity, holds 16 Persons, 1 m/s Speed
(278 Product Views)
Building lift with small machine room, mirror cladding, plastic flooring, capacity for 16 people, 1250 KG load, speed 1 m/s, featuring a modern design and advanced technology, ensuring an ideal and smooth user experience.
Product description

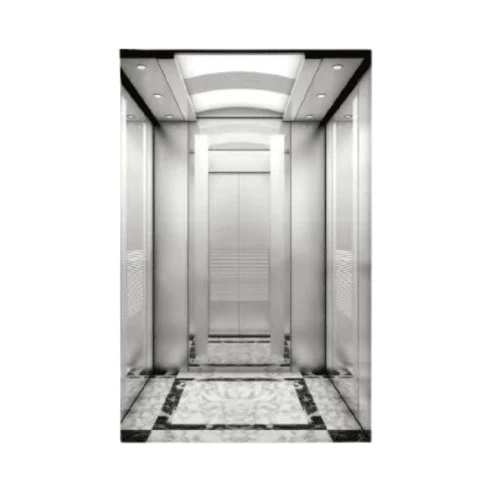

Passenger elevator with a small machine room, made from high-quality materials with a clean and elegant design. The ceiling has a central stainless steel arch with soft lighting on both sides, giving a calm and open look. The cabin walls are made of etched mirror panels with a fine finish, adding style and brightness. The floor is PVC, strong and easy to clean. This model comes with no handrail, which makes the space feel more open and simple. Perfect for residential or office buildings that want a modern and minimal look. Available in different designs and specs to suit all needs.
- Ceiling material: Stainless steel
- Wall material: Mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 1250 KG
- Number of passengers: 16 persons
- Speed: 1 m/s
- Car dimensions: 1900 × 1500 mm
- Door opening dimensions: 1100 × 2100 mm
- Shaft dimensions: 2500 × 2100 mm
- Machine room dimensions: 2500 × 2200 mm
- Pit depth: 1400 mm
- Top floor height: 4600 mm
- Motor power: 8.5 kW
- Reaction force R1: 60400 N
- Reaction force R2: 39400 N
- Reaction force R3: 8500 N
- Load force P1: 106000 N
- Load force P2: 81000 N
- Brand: FUJI
- Design code: JG-K02
- Model: TKJ1250/1
