Machine roomless passenger elevator, Compact design, 800 KG load, 10 persons , 1 m/s speed, etched marble walls
(406 Product Views)
Machine roomless passenger elevator, Compact design, 800 KG load, 10 persons , 1 m/s speed, etched marble walls, Suitable for high-end residential and commercial buildings. Available in a variety of styles.
Product description

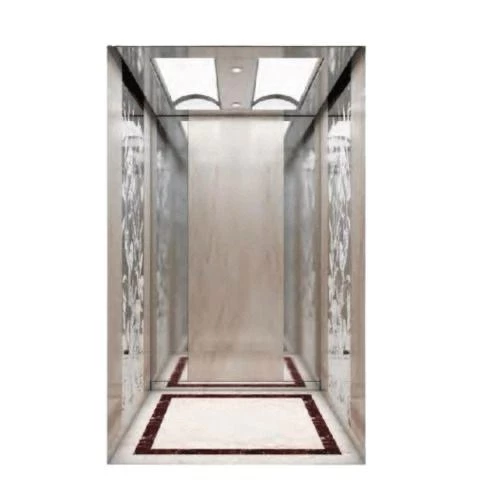

A machine roomless passenger elevator with a compact design that combines luxury and function. The ceiling features a hairline stainless steel frame with acrylic light-emitting panels and soft downlighting. The walls are made of marble or imitation marble with mirror etching for a refined look. No handrail is included, and the PVC floor ensures durability and easy maintenance. Suitable for high-end residential and commercial buildings. Available in a variety of styles.
- Description points in English
- Ceiling material: Hairline stainless steel frame with acrylic
- light-emitting panel and downlight
- Wall material: Marble or imitation marble with mirror etching
- Handrail material: None
- Floor material: PVC
- Color: Marble beige
- Load capacity: 800 KG
- Number of passengers: 10 persons
- Speed: 1 m/s
- Car dimensions: 1400 × 1350 mm
- Door opening dimensions: 800 × 2100 mm
- Shaft dimensions: 2050 × 1750 mm
- Pit depth: 1500 mm
- Top floor height: 4600 mm
- Motor power: 5.4 kW
- Reaction force R1: 25700 N
- Reaction force R2: 27100 N
- Load force P1: 72800 N
- Load force P2: 56000 N
- Brand: FUJI
- Design code: JG-K14
- Model: TKJW800/1
