Machine Roomless Passenger Elevator, Bronze Design with Translucent Illumination, Stainless Walls, Marble Parquet Flooring, 8 Persons, 630Load Limit, 1 m/s Speed
(588 Product Views)
Machine Roomless Passenger Elevator, Bronze Design with Translucent Illumination, Stainless Walls, Marble Parquet Flooring, 8 Persons, 630Load Limit, 1 m/s Speed for a luxurious yet modern look. The car walls are made of irregular grain stainless steel
Product description

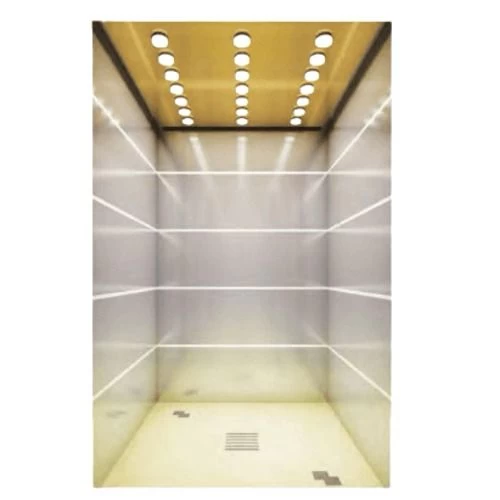

machine roomless passenger elevator showcases a premium bronze design with integrated acrylic lighting for a luxurious yet modern look. The car walls are made of irregular grain stainless steel with embedded mirror strips that enhance reflections and depth. The flooring features a marble parquet finish or imitation marble PVC, combining elegance with practicality. As an MRL system, the motor and control components are installed inside the shaft, eliminating the need for a separate machine room and reducing energy consumption by over 33%. Ideal for modern buildings and space-conscious projects. Available in various designs and specifications to suit all projects.
- Ceiling material: Bronze mirror frame with acrylic lighting decoration
- Wall material: Irregular grain stainless steel with mirror strip
- Handrail material: None
- Floor material: Marble parquet or imitation marble PVC
- Color: Silver
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1 m/s
- Car dimensions: 1400 × 1100 mm
- Door opening dimensions: 800 × 2100 mm
- Shaft dimensions: 2300 × 1700 mm
- Pit depth: 1600 mm
- Top floor height: 4300 mm
- Motor power: 4.3 kW
- Reaction force R1: 19800 N
- Reaction force R2: 26400 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K11
- Model: TKJW630/1
