Gearless Overhead Elevator, Arched Stainless Steel Ceiling, Etched Mirror Wall, PVC Floor, 10-Person Capacity, 800 KG Load, 1.75m/s Speed
(478 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

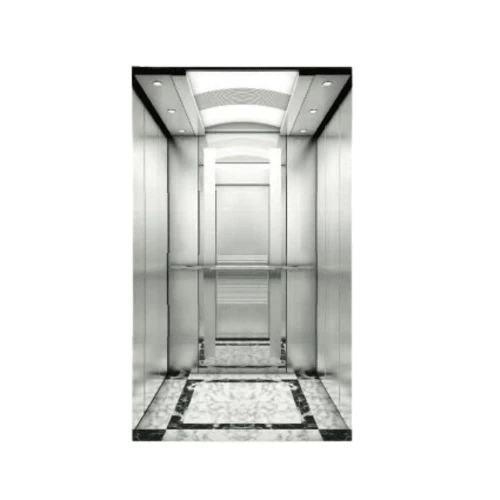

Gearless Overhead Elevator, Arched Stainless Steel Ceiling, etched mirror walls, and PVC flooring. It has a capacity of 10 passengers, a load capacity of 800 kg, and a speed of 1.75 m/s. It features etched mirror interior walls with an elegant linear finish, combining high performance with a modern appearance. It features a curved steel ceiling with soft lighting distributed on both sides for complete visual comfort.
Product description
A machine roomless passenger elevator with a modern and practical design that combines high performance and sleek aesthetics. It features an arched stainless steel ceiling with soft lighting on both sides, etched mirror walls with linear finishing, a stainless steel tube handrail, and a durable PVC floor. The elevator does not require a traditional machine room, as its motor and control unit are integrated within the shaft or on top of the car, saving a full floor of space. This design is ideal for narrow or modern buildings, offering greater architectural flexibility and high energy efficiency with eco-conscious operation.
- Ceiling material: Stainless steel
- Wall material: Etched mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 800 KG
- Number of passengers: 10 persons
- Speed: 1.75 m/s
- Car dimensions: 1400 Γ 1350 mm
- Door opening dimensions: 800 Γ 2100 mm
- Shaft dimensions:2300 Γ 1700 mm
- Pit depth: 1700 mm
- Top floor height: 4400 mm
- Motor power: 9.4 kW
- Reaction force R1: 25700 N
- Reaction force R2: 27100 N
- Load force P1:72800 N
- Load force P2: 56000 N
- Brand: FUJI
- Design code: JG-K01
- Model: TKJW800/1.75
