Gearless Overhead Elevator, Arched Stainless Steel Ceiling, Etched Mirror Wall, PVC Floor, 8-Person Capacity, 630 KG Load, 1.75 m/s Speed
(472 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Gearless Overhead Elevator, Arched Stainless Steel Ceiling, Etched Mirror Wall, PVC Floor, 8-Person Capacity, 630 KG Load, 1.75 m/s Speed practical design that combines high performance and sleek aesthetics. It features an arched stainless steel ceiling with soft lighting on both sides etched mirror walls with check finishing
Product description

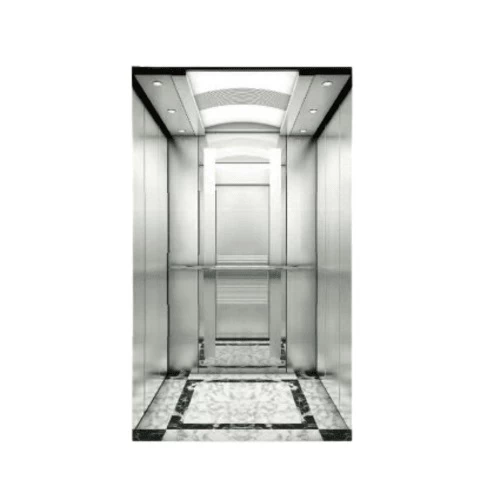

A machine roomless passenger elevator with a modern and practical design that combines high performance and sleek aesthetics. It features an arched stainless steel ceiling with soft lighting on both sides, etched mirror walls with linear finishing, a stainless steel tube handrail, and a durable PVC floor. The elevator does not require a traditional machine room, as its motor and control unit are integrated within the shaft or on top of the car, saving a full floor of space. This design is ideal for narrow or modern buildings, offering greater architectural flexibility and high energy efficiency with eco-conscious operation.
- Ceiling material: Stainless steel
- Wall material: Etched mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1.75 m/s
- Car dimensions: 1400 Γ 1100 mm
- Door opening dimensions: 800 Γ 2100 mm
- Shaft dimensions:2300 Γ 1700 mm
- Pit depth: 1700 mm
- Top floor height: 4400 mm
- Motor power: 7.5 kW
- Reaction force R1: 19800 N
- Reaction force R2: 26400 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K01
- Model: TKJW630/1.75
