Observation lift, 21 passengers, 1600 KG, 1.75 m/s speed, round casing with top lighting
(590 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Observation lift, 21 passengers, 1600 KG, 1.75 m/s speed, round casing with top lighting, characterized by being an environmentally friendly option thanks to its efficiency in energy consumption, and the provision of innovative and modern vertical transport solutions.
Product description

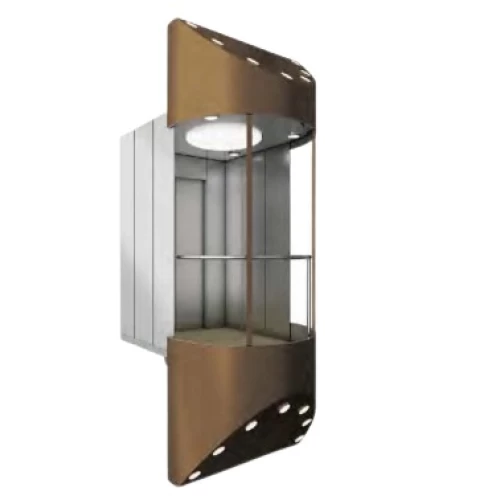

A circular panoramic elevator offering a unique sightseeing experience through its 6+6 laminated safety glass walls (3PCS). The car cover features a slanted baked enamel steel plate with an integrated down lamp, delivering a bold architectural statement. Inside, the ceiling is framed with decorative steel and soft acrylic lighting for a modern look. Ideal for malls, hotels, and public buildings aiming to impress. Available in customized finishes.
- Ceiling material: Decorative stainless steel frame with acrylic light-emitting panel and down lamp
- Wall material: Round 6+6 laminated safety glass (3PCS)
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver with copper accents
- Load capacity: 1600 KG
- Number of passengers: 21 persons
- Speed: 1.75 m/s
- Car dimensions: 1700x2200 mm
- Door opening dimensions: 1100x2100 mm
- Shaft dimensions: 3100x1500-2800 mm
- Pit depth: 1900 mm
- Top floor height: 4800 mm
- Motor power: 19.4 kW
- Reaction force R1: 36600 N
- Reaction force R2: 63400 N
- Load force P1: 136000 N
- Load force P2: 104000 N
- Brand: FUJI
- Design code: JG-G04
- Model: TGJW1600/1.75
