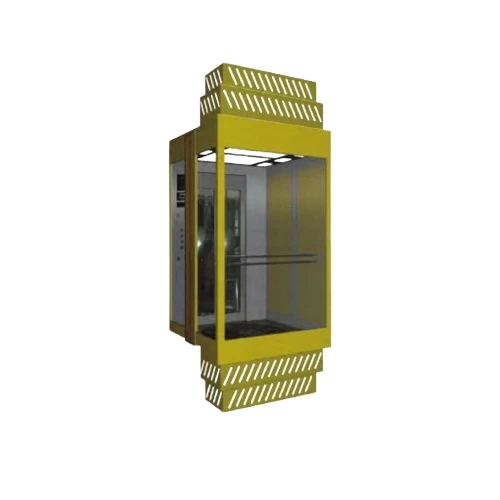

Glass lift with yellow finish, 10 passengers, 1 m/s, 800 KG load, panoramic viewing front
(457 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Glass lift with yellow finish, 10 passengers, 1 m/s, 800 KG load, panoramic viewing front, impactInterior walls are crafted from brushed stainless steel, and a double tube handrail adds both comfort and safety.
Product description
Square panoramic elevator featuring a bold matte yellow exterior that combines elegance with full visibility. The lift is equipped with 6+6 mm laminated safety glass (3PCS), providing a wide-angle panoramic view ideal for hotels, malls, and public spaces. The enamel-coated ceiling integrates acrylic lighting, delivering a sleek and contemporary visual impact. Interior walls are crafted from brushed stainless steel, and a double tube handrail adds both comfort and safety. Available in a variety of finishes and custom colors upon request.
- Car cover material: Baked enamel steel with lighting decoration
- Observation wall: 6+6 laminated safety glass (3PCS)
- Ceiling material: Baked enamel steel with acrylic lighting
- Interior wall: Brushed stainless steel
- Handrail material: Double tube stainless steel
- Floor material: PVC
- Color: Matte yellow
- Load capacity: 800 KG
- Number of passengers: 10 persons
- Speed: 1 m/s
- Car dimensions: 1400 Γ 1350 mm
- Door opening dimensions: 800 Γ 2100 mm
- Shaft dimensions: 2300 Γ 2000 mm
- Pit depth: 1600 mm
- Top floor height: 4600 mm
- Power: 5.4 kW
- Reaction force R1: 25700N
- Reaction force R2: 27100 N
- Load force P1: 72800
- Load force P2: 56000 N
- Brand: FUJI
- Design code: JG-G08
- Model: TGJW800/1
