High-Speed Passenger Elevator, 1000 KG Load, 13 Persons Capacity, Speed 4 m/s, Marble and Etched Titanium Mirror Wall with PVC Flooring
(421 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

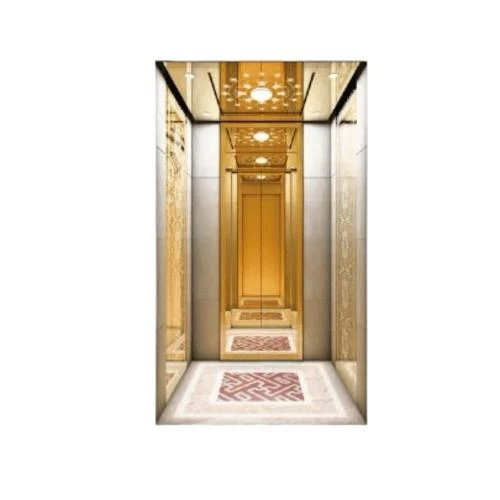

High-Speed Passenger Elevator, 1000 KG Load, 13 Persons Capacity, Speed 4 m/s, Marble and Etched Titanium Mirror Wall with PVC Flooring, features a designed roof with a mirror engraved that reflects the lighting in an elegant way.
Product description
A high-speed elevator featuring a smart 32-bit networked control system, delivering instant response and stable performance through advanced CAN bus technology. The elevator includes an advanced shock-absorbing system to isolate vibrations, ensuring a smooth and comfortable ride. Its luxurious interior combines marble or imitation marble walls with titanium-plated etched stainless steel mirrors, topped with a ceiling of etched titanium gold mirror featuring a central light and LED lights at all four sides. The PVC flooring adds practicality, making this elevator an ideal choice for luxury hotels and upscale residential buildings.
- Ceiling material: Etched titanium gold mirror with central ceiling lamp and LED at four sides
- Wall material: Marble or imitation marble grain, titanium-plated etched stainless steel mirror
- Handrail material: None
- Floor material: PVC
- Color: Gold and Marble
- Load capacity: 1000 KG
- Number of passengers: 13 persons
- Speed: 4 m/s
- Car dimensions: 1600x1400 mm
- Door opening dimensions: 900x2100 mm
- Shaft dimensions: 2300x2100 mm
- Machine room dimensions: 2300x2100 mm
- Pit depth: 400 mm
- Top floor height: 6200 mm
- Motor power: 27.1 kW
- Reaction force R1: 53400 N
- Reaction force R2: 32200 N
- Reaction force R3: 6000 N
- Load force P1: 88000 N
- Load force P2: 68000 N
- Brand: FUJI
- Design code: JG-K05
- Model: TKJ1000/4
