XLPE Stranded Copper Electric Wire, 120 mm, 600 volts, White Color, 100 meter Length | Saudi Cable Company (SCC)
(414 Product Views)

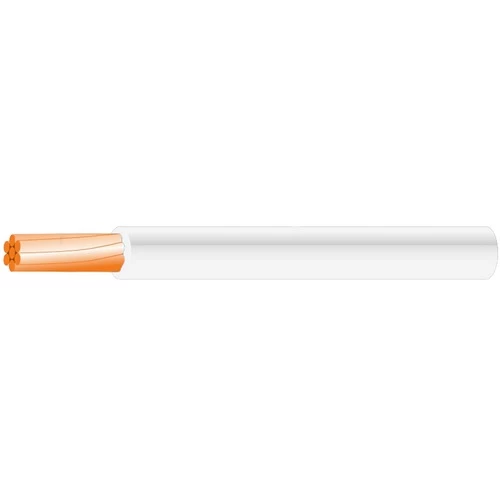

Stranded Copper Electric Wire (CU/XLPE), 120 sq mm cross-section, 600V, white color, manufactured by Saudi Cable Company. XLPE insulation offers high resistance to corrosion and moisture, making it ideal for large-scale power systems and electrical substations.
Product description
Stranded copper electrical wire (CU/XLPE), 600V, manufactured by Saudi Cable Company (SCC). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Suitable for building wiring, including installations for sockets, switches, and internal connections of devices and equipment. Additionally, it can be used in electrical distribution panels and within conduits installed above or below plaster in walls or ceilings. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: XLPE 90°C
- Voltage: 600 volts
- Conductor Size (Cross-Sectional Area): 120 mm
- Number of Wires in Conductor: 37
- Nominal Insulation Thickness: 1.7 mm
- Approx Overall Diameter: 17.8 mm
- Weight: 1135 kg/km
- Length: 100 meter/Drum
- Color: White
- Conforming to: UL:44
- Catalogue Number: CNA1-19W
