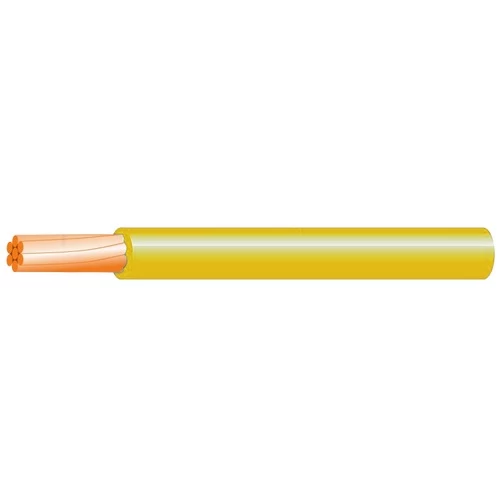

XLPE Insulated Stranded Copper Wire, 150 sq mm, 600V Rated Voltage, Yellow Color, Length 100 meter | Saudi Cable Company

Stranded copper electrical wire (CU/XLPE), 600V, manufactured by Saudi Cable Company (SCC). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Suitable for building wiring, including installations for sockets, switches, and internal connections of devices and equipment. Additionally, it can be used in electrical distribution panels and within conduits installed above or below plaster in walls or ceilings. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

• Conductor Material: Stranded Copper Conforming to IEC:228
• Insulation Material: XLPE 90°C
• Voltage: 600 volts
• Conductor Size (Cross-Sectional Area): 150 mm
• Number of Wires in Conductor: 37
• Nominal Insulation Thickness: 1.7 mm
• Approx Overall Diameter: 19.3 mm
• Weight: 1385 kg/km
• Length: 100 meter/Drum
• Color: Yellow
• Conforming to: UL:44
• Catalogue Number: CNA1-21Y
