CU/XLPE/PVC Cable 150mm Size 0.6/1kV, 3 Core, Stranded Copper, 500 meter | RESCAB
(637 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

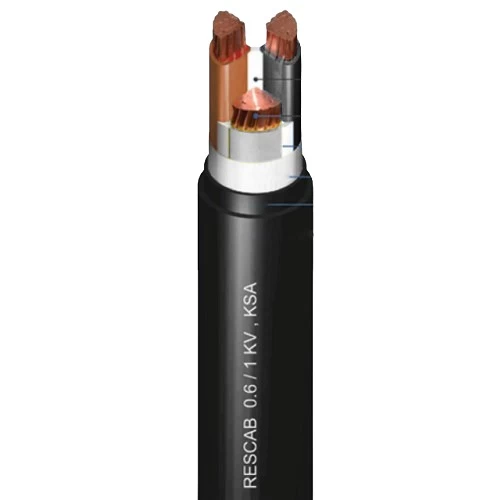

Unarmored solid copper power cable (CU/XLPE/PVC), 3 core, 150mm2 size conductor, 0.6/1kV, Withstands mechanical vibrations without damage, and resists the effects of chemicals and various environmental factors. Produced by Red Sea Cables Company (RESCAB), insulation color (brown, black, gray).
Product description
Unarmored solid copper power cable (CU/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Solid Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 150 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.4 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 47 mm
- Max DC Conductor Resistance at 20°C: 0.124 ohm/km
- Weight: 5200 kg/km
- Standard Length: 500 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
