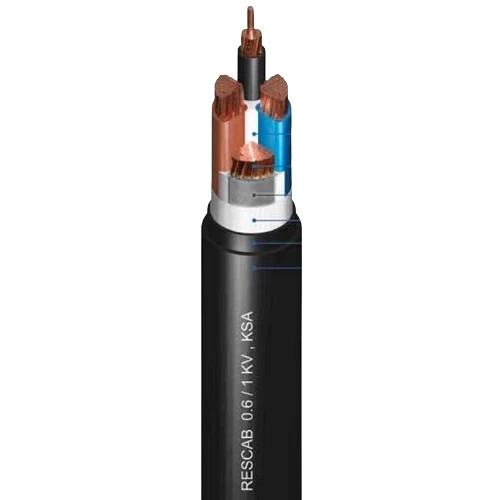

3x300 + 150mm 0.6/1kV 3.5 Core Power Cable, Stranded Copper Wire, XLPE Insulated, PVC Jacketed, 250 m | RESCAB

Stranded copper power cable (CU/XLPE/PVC), produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3.5 Core (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 3cx300 mm2 ) + 150mm2
• Number of Phase Wires: 61
• Number of Neutral Wires: 37
• Nominal Insulation Thickness of Phase: 1.8  mm
• Nominal Insulation Thickness of Neutral: 1.4  mm
• Nominal Sheath Thickness: 2.9 mm
• Approx Overall Diameter: 63 mm
• Max DC Conductor Resistance at 20°C (Ph): 0.0601 ohm/km
• Max DC Conductor Resistance at 20°C (Ne): 0.124 ohm/km
• Weight: 11440 kg/km
• Standard Length : 250 meters
• Phase Core Colors: (Blue, Brown, Black, Grey)
• Standard: BS 5467, 6346 Latest
