3x50 + 25sq mm 0.6/1kV 3.5C Electrical Cable, Stranded Copper Conductor, XLPE Insulation, PVC Jacketed, Length 500 M | RESCAB
(572 Product Views)

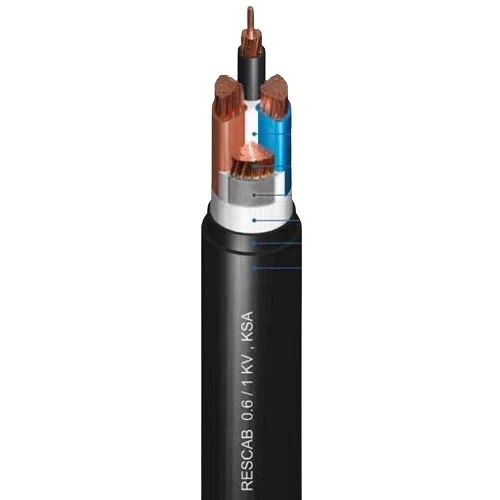

Stranded copper cable (CU/XLPE/PVC), 3C + neutral line, 3x50+25sq mm size, produced by Red Sea Cables (RESCAB) Company, 0.6/1kV, offers excellent resistance to moisture, corrosion, and chemicals.
Product description
Stranded copper power cable (CU/XLPE/PVC), produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx50 mm2 ) + 25mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.0 mm
- Nominal Insulation Thickness of Neutral: 0.9 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 30 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.387 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.727 ohm/km
- Weight: 2060 kg/km
- Standard Length : 500 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346 Latest
