3x6mm Solid Copper Power Cable 600/1000V, XLPE Insulated | Riyadh Cables
(819 Product Views)

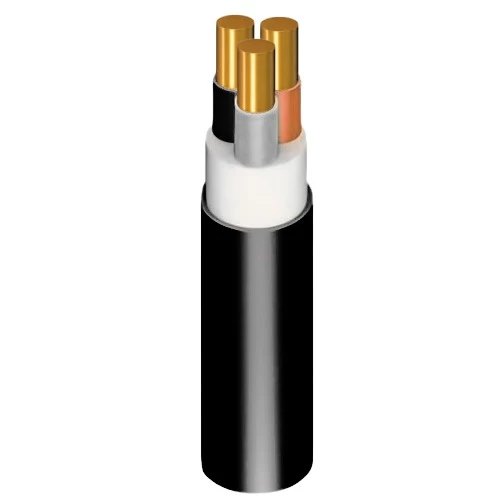

Three core solid copper electrical cable (CU/XLPE/PVC), Insulation colors (brown, black, grey), coated with an outer layer of high-quality PVC, produced by Riyadh Cables Company, Size 6 mm2.
Product description
Three core solid copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company. according to IEC 60502-1(International Electrotechnical Commission) standard. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. It is also sheathed with a high-quality PVC (polyvinyl chloride) that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage : 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.76 mm
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 15 mm
- Weight: 400 kg/km
- Length : 1000 meters
- Phase Core Colors: (brown, black, grey)
- Standard: IEC 60502-1
