CU/XLPE/PVC Power Cable 4mm Size 0.6/1kV, 3 Core, Solid Copper, 1000 meter | RESCAB
(465 Product Views)

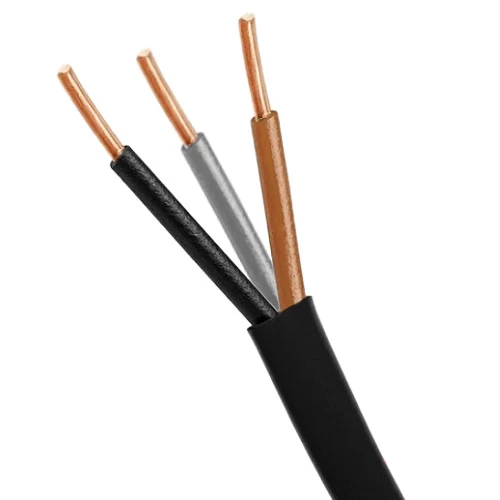

Unarmored solid copper power cable (CU/XLPE/PVC), 3 core, 4mm2 size conductor, 0.6/1kV, It retains its physical and chemical properties even when exposed to temperatures up to 90°C, manufactured by Red Sea Cables Company (RESCAB), insulation color (brown, black, gray).
Product description
Unarmored solid copper power cable (CU/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Solid Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of wires: 1
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 15 mm
- Max DC Conductor Resistance at 20°C: 4.61 ohm/km
- Weight: 340 kg/km
- Standard Length: 1000 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
