2 Core 4mm Power Cable 0.6/1kV, Solid Copper Conductor, XLPE Insulation, Length 1000 meter | SCC
(199 Product Views)

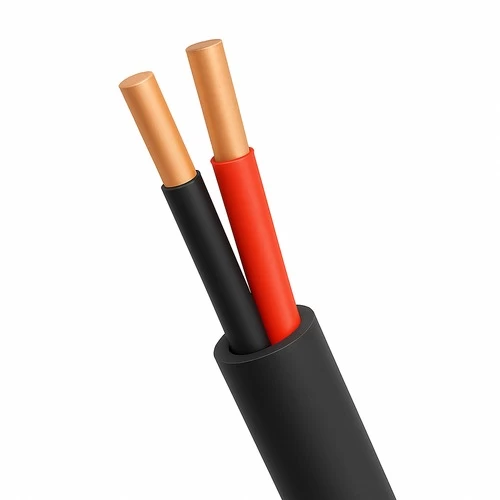

Unarmored solid copper electric cable (CU/XLPE/PVC), 2 cores, size 4 mm², low voltage 0.6/1 kV, manufactured by Saudi Cables Company (SCC), suitable for medium electrical devices with high current tolerance.
Product description
Solid copper power cable (CU/XLPE/PVC), produced by Saudi Cables Company (SCC). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Solid Copper
- Insulation Material: XLPE (cross-linked polyethylene) rated 90°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of wires: 1
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 13.5 mm
- Weight: 210 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: ANH2-06A
