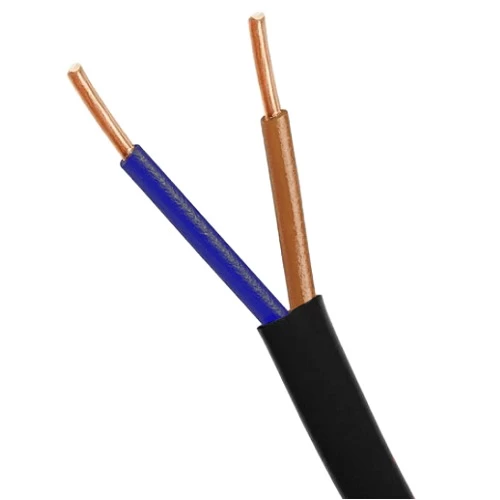

CU/XLPE/PVC 2.5mm Two Core Cable, Solid Copper Wire, 0.6/1kV, Length 1000 M/Drum | RESCAB
(801 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Solid Copper Electric Cable (CU/XLPE/PVC), 2 Core, 2.5 sq mm, Low Voltage 0.6/1kV, manufactured by Red Sea Cables. Coated with a PVC layer that protects the cable from mechanical damage and UV rays, ensuring its durability in various conditions.
Product description
Solid copper power cable (CU/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90ยฐC for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Solid Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Number of wires: 1
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 13 mm
- Max DC Conductor Resistance at 20ยฐC: 7.41 ohm/km
- Weight: 218 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Brown, Blue
- Standard: BS 5467, 6346 Latest
