150 mm 3 Core 0.6/1kV Armored Cable, CU/XLPE/SWA/PVC, Stranded Copper, 500 meter | BAHRA

150 mm 3 Core 0.6/1kV Armored Cable, CU/XLPE/SWA/PVC, Stranded Copper, 500 meter | BAHRA

(340 Product Views)

YouMats

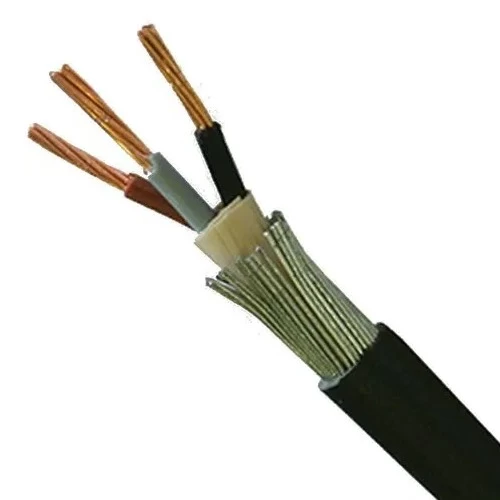

Armored stranded copper power cable (CU/XLPE/SWA/PVC), 3 core, 150 mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures ensuring safety of use.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Armored stranded copper power cable (CU/XLPE/SWA/PVC), Produced by BAHRA Cables Company armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

  • Conductor: Stranded Copper
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Armoring: Galvanized Steel Wires (SWA)
  • Outer Sheath: PVC
  • Voltage: 0.6/1kV
  • Number of Cores: 3
  • Conductor Size (Cross-Sectional Area):150 mm2
  • Number of wires: 37
  • Nominal Insulation Thickness: 1.4 mm
  • Nominal Aluminum Wire Diameter: 2.5 mm
  • Nominal Sheath Thickness:  2.5 mm
  • Approx Overall Diameter: 53.1  mm
  • Weight: 7172 kg/km
  • Standard Length: 500 meters
  • Phase Core Color: Brown, Black, Gray
  • Standard: BS 5467
