3x150+70 mm 600/1000V Power Cable, Aluminum Conductor XLPE Insulated, PVC Sheath, Armored with Steel Wires | Jeddah Cables
(830 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

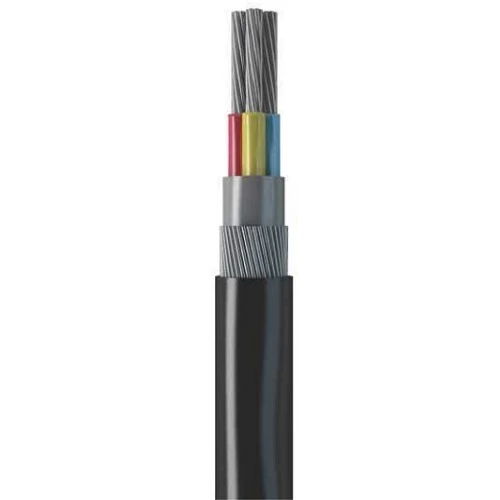

3.5 core stranded aluminum cable (AL/XLPE/SWA/PVC), conductor size 3x150+70mm2, low voltage 600/1000V. It offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use produced by Jeddah Company, phase core colors is red, yellow, blue and black.
Product description
Power cable (AL/XLPE/SWA/PVC), produced by Jeddah Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Voltage: 600/1000 volts
- Conductor Shape: Drawn Aluminum Wires
- Insulation Material: XLPE (or PVC or LSHF)
- Bedding: PVC Compound (or LSHF or PE)
- Armouring: Steel Wires (SWA)
- Jacketing: PVC Compound (or LSHF or PE)
- Number of Cores: 3 Core + Neutral
- Conductor Size (Cross-Sectional Area): 3×150+70 mm2
- Nominal Insulation Thickness (ph/N): 1.4/1.1 mm
- Nominal Diameter of Steel Wires: 2.5 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 49.8 mm
- Weight: 4525 kg/km
- Max DC Conductor Resistance at 20°C (ph/N): 0.206 /0.443 ohm/km
- Current Rating Laid in Ground: 302 Ampere
- Current Rating Laid in Ducts: 252 Ampere
- Current Rating Laid in Free Air: 316 Ampere
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
