3x300+150 mm 600/1000V Cable, Aluminum Conductor XLPE Insulated, PVC Sheath, Armored with Steel Wires | Jeddah Cables
(608 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

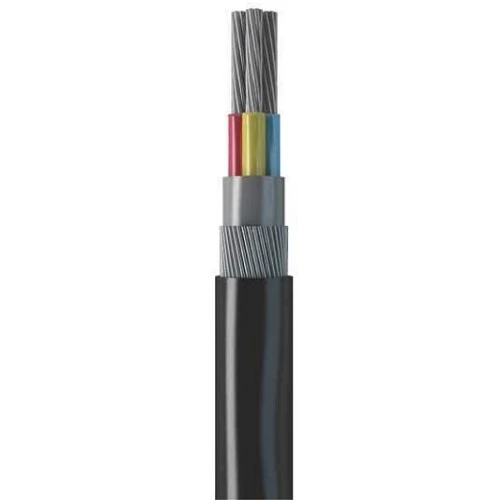

3.5 core stranded aluminum cable, XLPE insulated, size 3×300+150mm2 , 0.6/1kV, phase core colors is red, yellow, blue and black, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable, produced by Jeddah Company.
Product description
Power cable (AL/XLPE/SWA/PVC), produced by Jeddah Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Voltage: 600/1000 volts
- Conductor Shape: Drawn Aluminum Wires
- Insulation Material: XLPE (or PVC or LSHF)
- Bedding: PVC Compound (or LSHF or PE)
- Armouring: Steel Wires (SWA)
- Jacketing: PVC Compound (or LSHF or PE)
- Number of Cores: 3 Core + Neutral
- Conductor Size (Cross-Sectional Area): 3×300+150 mm2
- Nominal Insulation Thickness (ph/N): 1.8/1.4 mm
- Nominal Diameter of Steel Wires: 2.5 mm
- Nominal Sheath Thickness: 3 mm
- Approx Overall Diameter: 65.3 mm
- Weight: 7400 kg/km
- Max DC Conductor Resistance at 20°C (ph/N): 0.100 /0.206 ohm/km
- Current Rating Laid in Ground: 445 Ampere
- Current Rating Laid in Ducts: 369 Ampere
- Current Rating Laid in Free Air: 503 Ampere
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
