150 sq mm 3.5 Core Aluminum Cable, 0.6/1kV, XLPE Insulated, STA Armed | Riyadh Cables
(1053 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

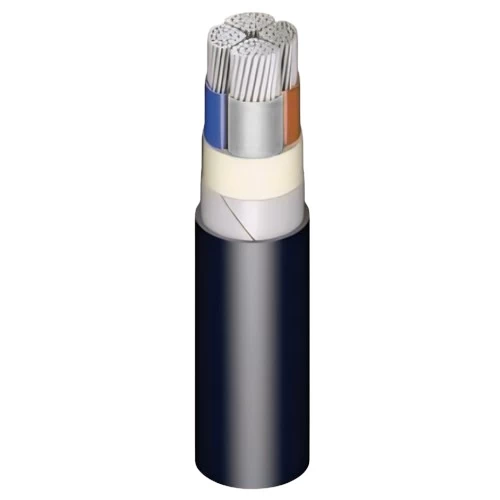

3.5 core armored power cable (AL/XLPE/STA/PVC), stranded aluminum conductor, cross-sectional area 3×150+70 mm2, insulation color (blue, brown, black, gray), the cable withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use, produced by Riyadh Cables Company.
Product description
3.5 core armored power cable (AL/XLPE/STA/PVC), stranded aluminum conductor, produced by Riyadh Cables Company, Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Also, it is sheathed with an outer layer of high-quality PVC (polyvinyl chloride) that provides additional protection against corrosion and UV rays, ensuring long-lasting durability. XLPE armored cable is widely used in a variety of underground power applications, including supplying electricity to residential, commercial, and industrial buildings where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage: 600/1000 volts
- Phase Conductor Shape: Sectoral Stranded (sm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3c×150 mm2 ) + 70 mm2
- Number of Phase Wires: 15
- Number of Neutral Wires: 19
- Approx Diameter of Neutral Conductor: 10.55 mm
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.1 mm
- Armoring: STA (Steel Tape Armor)
- Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 47 mm
- Weight: 3175 kg/km
- Cable Length: 500 meters
- Phase Core Colors: (Blue, Brown, Black, Gray)
- Standard: IEC 60502-1
