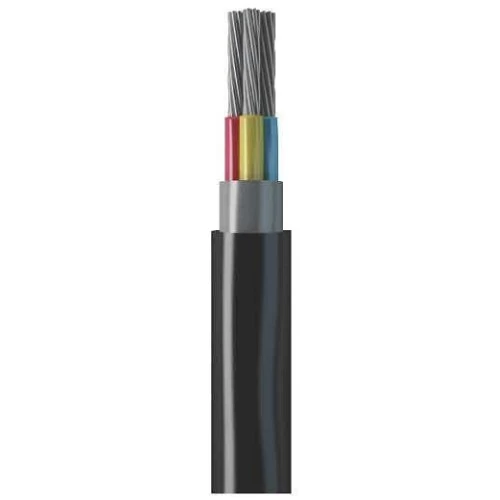

Jeddah Stranded Aluminum Cable, Size 35mm, Four Core, XLPE Insulated, Low Voltage 600/1000 volts

4 core stranded Aluminium cable (AL/XLPE/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Aluminium
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 35 mm2
• Nominal Insulation Thickness: 0.9 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 28 mm
• Weight: 1865 kg/km
• Max DC Conductor Resistance at 20°C: 0.524 ohm/km
• Current Rating Laid in Ground: 177 Ampere
• Current Rating Laid in Ducts: 140 Ampere
• Current Rating Laid in Free Air: 161 Ampere
• Phase Core Colors: (red, yellow, blue, black)
• Standard: IEC 60502-1
