4×300 mm2 Stranded Aluminum Cable 0.6/1kV, XLPE Insulated, PVC Sheathed | Riyadh Cables
(1363 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

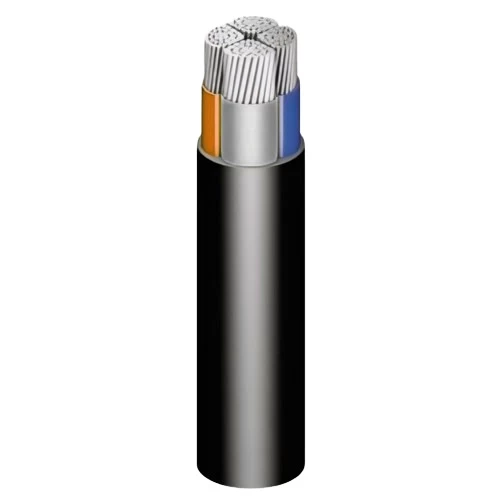

4 core stranded aluminum power cable (AL/XLPE/PVC), cross-sectional area 4×300 mm2, insulation color (blue, brown, black, gray), produced by Riyadh Cables Company, it can withstand high temperatures up to 90°C for extended periods without compromising performance, the cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals.
Product description
4 core stranded aluminum power cable (AL/XLPE/PVC), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage: 600/1000 volts
- Conductor Shape: Sectoral Stranded (sm)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 300 mm2
- Number of Wires: 30
- Nominal Insulation Thickness: 1.8 mm
- Nominal Sheath Thickness: 3 mm
- Approx Overall Diameter: 64 mm
- Weight: 5100 kg/km
- Cable Length: 250 meters
- Phase Core Color: (Blue, Brown, Black, Gray)
- Standard: IEC 60502-1
