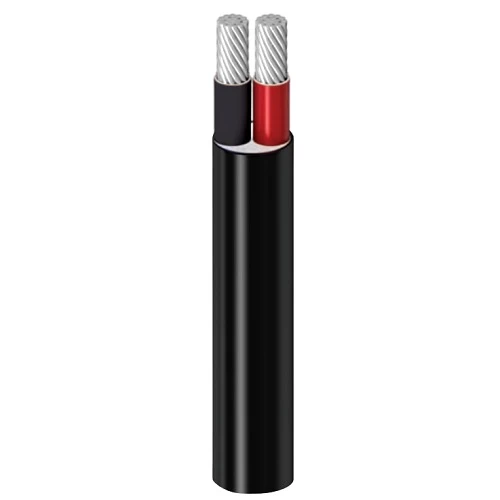

35 sq mm 2 Core Stranded Aluminum Cable, XLPE Insulated, Low Voltage 0.6/1kV | Alfanar

Two core stranded aluminum cable (AL/XLPE/PVC), Produced by Al Fanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Aluminum
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 35 mm2
• Max DC Conductor Resistance at 20°C: 0.8680 ohm/km
• Max AC Conductor Resistance at 70°C: 1.1133 ohm/km
• Current Rating Laid in Ground: 142 Ampere
• Current Rating Laid in Ducts: 103 Ampere
• Current Rating Laid in Free Air: 142 Ampere
• Approx Overall Diameter: 21 mm
• Weight: 590 kg/km
• Phase Core Color: (Red, Black)
• Standard: IEC 60502-1
