Aluminum Stranded Cable 2×35 mm 0.6/1kV, XLPE Insulated, PVC Sheathed | Riyadh Cables

Aluminum Stranded Cable 2×35 mm 0.6/1kV, XLPE Insulated, PVC Sheathed | Riyadh Cables

(857 Product Views)

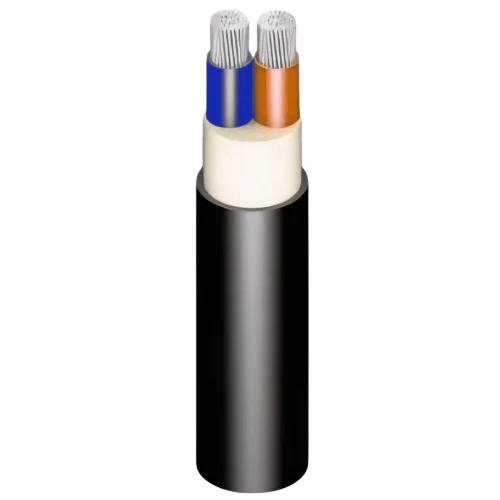

Aluminum stranded cable 2×35 mm2, XLPE insulated, PVC sheathed, according to IEC 60502-1 (international electrotechnical commission) standard, insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability, (brown, blue) color, produced by Riyadh Cables Company.

in stock

Quantity

Call Now

🔗 Related Content

Red Sea Cables Company Straight Perforated Cable Tray, GI,... 4 Core 16 mm Stranded Copper Cable... Alfanar Cable 1.5 mm Single Core, S... Jeddah Cable Price List Aluminum Stranded Cable 2×35 mm 0.6... Aluminum Stranded Cable 2×25 mm 0.6... 1×35 mm2 Stranded Aluminum Cable 60...

Product description

2 core stranded aluminum power cable (AL/XLPE/PVC), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

Conductor Type: Aluminum
Insulation Material: XLPE (Cross-Linked Polyethylene)
Outer Sheath: PVC (Polyvinyl Chloride)
Voltage: 600/1000 volts
Conductor Shape: Stranded (rm)
Number of Cores: 2
Conductor Size (Cross-Sectional Area): 35 mm2
Number of Wires: 7
Approx Conductor Diameter: 7.41 mm
Nominal Insulation Thickness: 0.9 mm
Nominal Sheath Thickness: 1.8 mm
Approx Overall Diameter: 25 mm
Weight: 775 kg/km
Cable Length: 1000 meters
Phase Core Color: (Brown, Blue)
Standard: IEC 60502-1

Additional Information▼

Practical Applications and Cable Benefits in Saudi Projects

The 35 mm² Aluminum Cable (AL/XLPE/PVC) from Riyadh Cables is the optimal choice for electrical requirements in the Kingdom of Saudi Arabia, thanks to the XLPE insulation's ability to withstand high temperatures reaching up to 90°C, which is crucial in the desert climate. This cable is widely used in:

Internal distribution in residential and commercial buildings: As it is stranded, it is easy to install and flexible for passing through narrow conduits and electrical corridors.
Industrial facilities and factories: Its resistance to corrosion and chemicals makes it ideal for industrial areas exposed to harsh environmental conditions.
Outdoor works and gardens: The outer PVC sheath provides high mechanical protection against accidental breakage during digging or finishing works.

Quick Guide to Choosing the Right Cable

When ordering 35mm Aluminum Cable, ensure the following specifications match to guarantee quality and compliance with Saudi standards:

Conductor: Must be stranded aluminum to reduce contact resistance and prevent easy conductor breakage.
Insulation: Ensure XLPE insulation is present to ensure efficient and safe current transmission.
Standard: The cable must comply with the international IEC 60502-1 standard to ensure compatibility with modern distribution systems.
