3x500+240 sq mm 600/1000V Electrical Cable, Copper Conductor XLPE Insulated, LSNH Sheath | Produced by Alfanar
(804 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

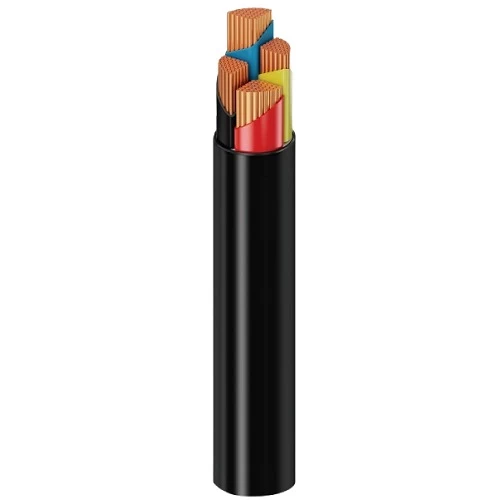

Three and a half core copper electrical cable, size 3×500+240 sq mm. XLPE insulation provides flexibility and durability, making it ideal for a wide range of applications. The LSNH sheath reduces risks in the event of a fire, making it suitable for fixed installations and sensitive locations. Produced by Alfanar.
Product description
3.5 core stranded copper electrical cable(CU/XLPE/LSHF), produced by Alfanar Cables Company, provides a unique combination of strength, flexibility, and reliability, making it suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also resists harsh environmental conditions, including moisture, corrosion, and chemicals, making it ideal for outdoor use. Being chloride-free, it is environmentally friendly. Additionally, the cable is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizing smoke and toxic fumes in case of fire. Therefore, it is suitable for use in fixed installations and areas where smoke and acid gas emissions could pose a hazard to personnel or sensitive equipment, such as schools, hospitals, hotels, shopping centers, subways, etc. This cable is available in various shapes and sizes of the highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: LSHF
- Voltage: 600/1000 volts
- Number of Cores: 3.5
- Conductor Size (Cross-Sectional Area): 500 mm²
- Nominal Insulation Thickness: 0.0366 mm
- Nominal Sheath Thickness: 0.0754 mm
- Approx Overall Diameter: 0.1012 mm
- Weight: 17420 kg/km
- Max DC Conductor Resistance at 20°C: 0.0561 ohm/km
- Current Rating Laid in Ground: 598 Ampere
- Current Rating Laid in Ducts: 764 Ampere
- Current Rating Laid in Free Air: 70.3 Ampere
- Color: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
