3x240+120 mm² 600/1000V Cable, Copper Wire XLPE Insulated, LSZH Sheath | Produced by Alfanar
(1219 Product Views)

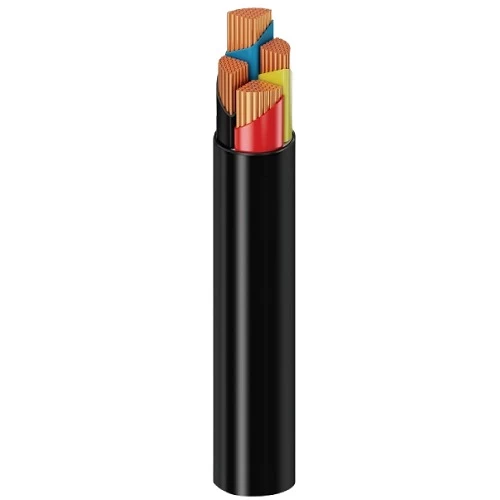

Three and a half core copper electrical cable, size 3×240+120 mm². XLPE insulation provides flexibility and durability, making it suitable for a wide range of applications. The LSZH sheath reduces smoke and toxic fumes in the event of a fire, ideal for fixed installations and sensitive locations. Produced by Alfanar.
Product description
3.5 core stranded copper electrical cable(CU/XLPE/LSHF), produced by Alfanar Cables Company, provides a unique combination of strength, flexibility, and reliability, making it suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also resists harsh environmental conditions, including moisture, corrosion, and chemicals, making it ideal for outdoor use. Being chloride-free, it is environmentally friendly. Additionally, the cable is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizing smoke and toxic fumes in case of fire. Therefore, it is suitable for use in fixed installations and areas where smoke and acid gas emissions could pose a hazard to personnel or sensitive equipment, such as schools, hospitals, hotels, shopping centers, subways, etc. This cable is available in various shapes and sizes of the highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: LSHF
- Voltage: 600/1000 volts
- Number of Cores: 3.5
- Conductor Size (Cross-Sectional Area): 240 mm²
- Nominal Insulation Thickness: 0.0754 mm
- Nominal Sheath Thickness: 0.1530 mm
- Approx Overall Diameter: 0.1976 mm
- Weight: 8450 kg/km
- Max DC Conductor Resistance at 20°C: 0.1012 ohm/km
- Current Rating Laid in Ground: 399 Ampere
- Current Rating Laid in Ducts: 495 Ampere
- Current Rating Laid in Free Air: 49.9 Ampere
- Color: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
