500 sq mm 4 Core Aluminum Cable 0.6/1kV, SWA Armed, LSHF Sheathed | Riyadh Cables
(1675 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

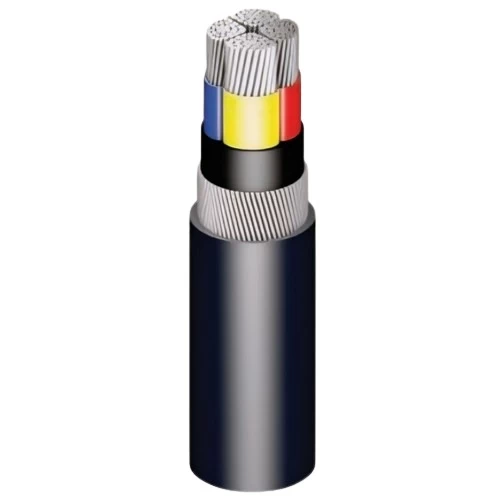

Armored aluminum power cable (AL/XLPE/SWA/LSHF). 4 core stranded 4×500 mm2, insulation color (Red, Yellow, Blue, Black), low voltage 600/1000V, according to IEC 60502-1 (International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) suitable for a diverse range of applications, Produced by Riyadh Cables Company.
Product description
Armored aluminum power cable (AL/XLPE/SWA/LSHF). 4 core stranded, Produced by Riyadh Cables Company. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Conductor Shape: Sectoral Stranded (sm)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 500 mm2
- Number of Wires: 53
- Nominal Insulation Thickness: 2.2 mm
- Armoring: SWA (Steel Wire Armor)
- Nominal Steel Wire Diameter: 3.15 mm
- Nominal Sheath Thickness: 3.8 mm
- Approx Overall Diameter: 88 mm
- Weight: 13000 kg/km
- Cable Length: 1000 meters
- Phase Core Color: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
