Aluminum Cable 3×95+50 mm 0.6/1kV, SWA Armed, LSHF Sheath | Riyadh Cables

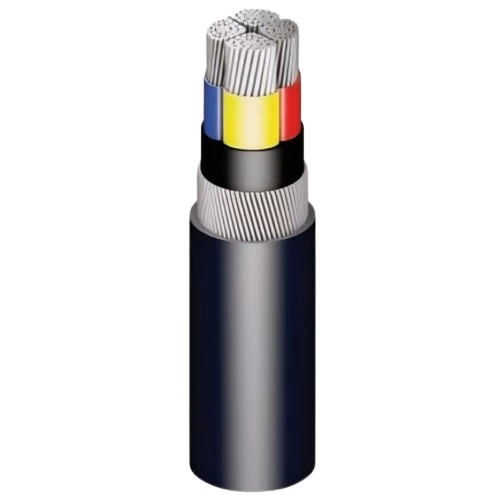

Aluminum armored power cable (AL/XLPE/SWA/LSHF), 3.5 core stranded, Produced by Riyadh Cables Company. which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Type: Aluminum
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: LSHF (Low Smoke Halogen Free)
• Voltage: 600/1000 volts
• Phase Conductor Shape: Sectoral Stranded (sm)
• Neutral Conductor Shape: Round Stranded (rm)
  Number of Cores: 3.5 (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 3c×95 mm2 ) + 50 mm2
• Number of Phase Wires: 15
• Number of Neutral Wires: 19
• Approx Diameter of Neutral Conductor: 8.75 mm
• Nominal Insulation Thickness of Phase: 1.1 mm
• Nominal Insulation Thickness of Neutral: 1.0 mm
• Armoring: SWA (Steel Wire Armor)
• Nominal Steel Wire Diameter: 2.0 mm
• Nominal Sheath Thickness: 2.2 mm
• Approx Overall Diameter: 41 mm
• Weight: 2975 kg/km
• Cable Length: 500 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
