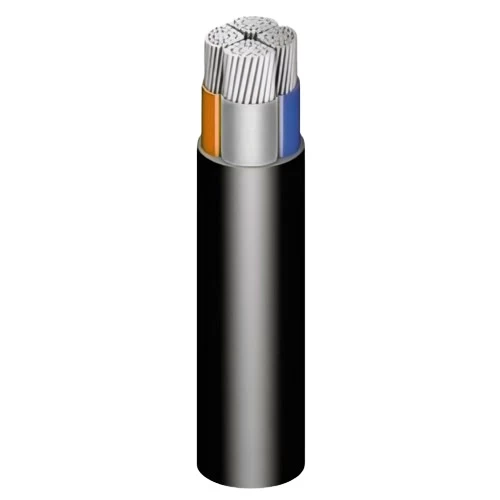

3.5 Core 150 mm Stranded Aluminum Cable 0.6/1kV, XLPE Insulated, LSHF Sheathed | Riyadh Cables
(842 Product Views)
Aluminum power cable (AL/XLPE/LSHF). 3.5 core stranded, Produced by Riyadh Cables Company, cross-sectional area 3×150+70 mm2, low voltage 600/1000V, insulation color (Blue, Brown, Black, Grey). according to IEC 60502-1 (International Electrotechnical Commission) standard. Insulated with XLPE (cross-linked polyethylene) The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals.
Product description
Aluminum power cable (AL/XLPE/LSHF). 3.5 core stranded, Produced by Riyadh Cables Company. which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Phase Conductor Shape: Sectoral Stranded (sm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3c×150 mm2 ) + 70 mm2
- Number of Phase Wires: 15
- Number of Neutral Wires: 19
- Approx Diameter of Neutral Conductor: 10.55 mm
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.1 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 45 mm
- Weight: 2425 kg/km
- Cable Length: 500 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: IEC 60502-1
