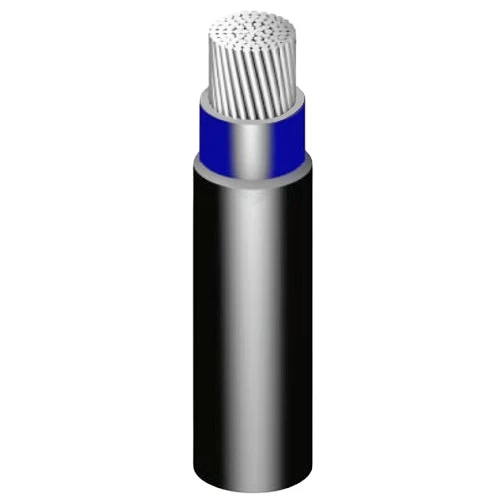

Riyadh Cable Single Core 16mm Stranded Aluminium Conductor 0.6/1kV, XLPE Insulated, LSHF Sheathed
(1002 Product Views)
Aluminium electrical cable (AL/XLPE/LSHF), Stranded single core 1×16 mm2, blue color. Produced by Riyadh Cables Company according to IEC 60502-1 (International Electrotechnical Commission) standard. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications, low voltage 600/1000V.
Product description
Aluminium electrical cable (AL/XLPE/LSHF), Produced by Riyadh Cables Company. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of Wires: 7
- Approx Conductor Diameter: 5 mm
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.4 mm
- Approx Overall Diameter: 10 mm
- Weight: 110 kg/km
- Cable Length: 1000 meters
- Phase Core Color: blue
- Standard: IEC 60502-1
