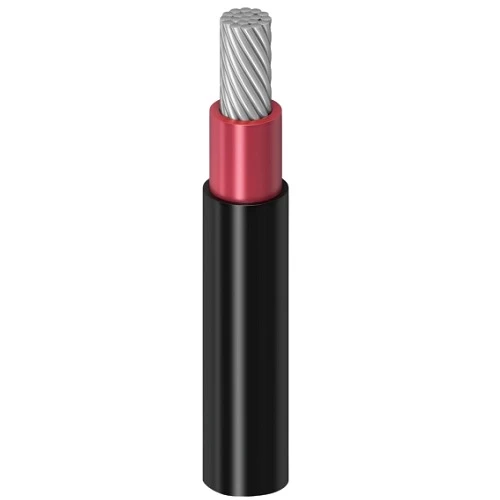

35 mm 600/1000V single core power cable, stranded aluminum wire, XLPE insulation, LSHF sheathed, phase core color is red, use in applications where mechanical protection is not required or mechanical damages are not expected to occur. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs from Alfanar Company.
Product description
Stranded electrical cable (AL/XLPE/LSHF), produced by Alfanar Company according to IEC 60502-1 (International Electrotechnical Commission) standard. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed installations, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipment in schools, hospitals, hotels, shopping centers, subways, etc., and in applications where mechanical protection is not required or mechanical damages are not expected to occur. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Aluminum
- Conductor Shape: Plain Annealed Stranded Circular or Circular
- Compacted Copper Conductor (Class 2)
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 35 mm2
- Approx Overall Diameter: 11.5 mm
- Weight: 185 kg/km
- Max DC Conductor Resistance at 20°C: 0.8680 ohm/km
- Max AC Conductor Resistance at 90°C: 1.1131 ohm/km
- Current Rating Buried Direct in Ground (Trefoil): 116 Ampere
- Current Rating Buried Direct in Ground (Flat D Spaced): 116 Ampere
- Current Rating in Buried Ducts (Trefoil): 90 Ampere
- Current Rating in Buried Ducts (Flat Touched): 99 Ampere
- Current Rating in Free Air (Trefoil): 116 Ampere
- Current Rating in Free Air (Flat Touched): 120 Ampere
- Current Rating in Free Air (Flat 2D Spaced): 153 Ampere
- Phase Core Color: Red
- Standard: IEC 60502-1
