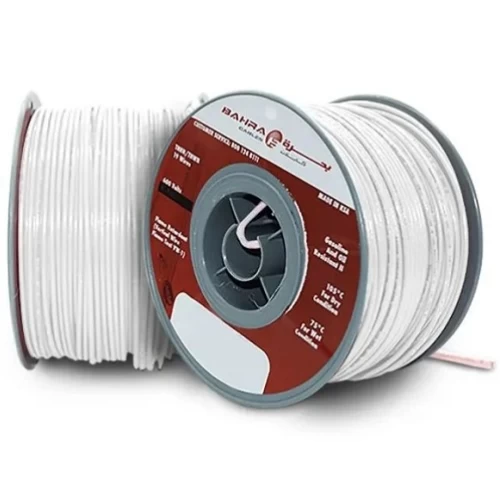

BAHRA 8 AWG THHN American Electric Wire, 600 Voltage Rating, Stranded Copper PVC Insulated, Nylon Jacket, White Color

THHN/THWN electrical american building wire, stranded copper, (CU/ PVC/ NYLON). manufactured by Bahra Cables Company according to American specifications (UL 83 & UL 1581). Insulated with polyvinyl chloride (PVC) and jacketed with nylon for added protection against abrasion and scratches during conduit pulling. It also offers good resistance to oil, gasoline, and chemicals. It is also characterized by its high resistance to heat and water, where It is appropriate for use in dry locations at temperatures not to exceed 105˚C or not to exceed 75°C in wet locations, oil or coolants. THHN/THWN building wires are used in general applications for providing power and lighting in residential, commercial, and industrial buildings. Available in a variety of sizes and colors with highest quality and best prices.

• Wire Type: THHN/THWN Building wire (suitable for dry locations 105°C and wet locations 75°C)
• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride) 105 °C
• Jacket: Nylon
• Voltage: 600 volts
• Size (Cross-sectional area): 8 AWG (8.37 mm2)
• Number of Wires x Nominal Wire Diameter: 13× 0.8+ 6×0.6 mm
• Maximum DC Resistance at 20°C: 2.144 ohm/km
• Nominal Insulation Thickness: 0.76 mm
• Nylon Jacket Thickness: 0.13 mm
• Overall Diameter:5.45 mm
• Current Carrying Capacity (THHN 90°C): 80 Ampere
• Current Carrying Capacity (THWN 75°C): 70 Ampere
• Standard Packing Length: 500 feet (152.4 meters) Coil or Plastic Spools
• Insulation Color: White
• Stradards: UL 83, UL 1581
