Stranded Copper Single Core Wire, 70 sq mm, 450/750V Rated Voltage, PVC 85°C Insulated, Yellow Color, Length 1000 meter | Saudi Cable Company
(556 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

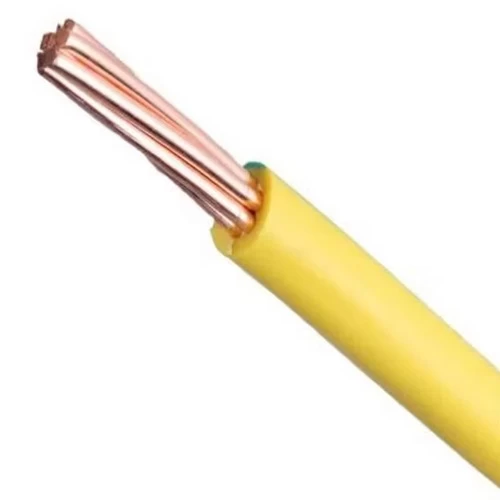

Single-core stranded copper electrical wire (CU/PVC) with a 70 mm2 cross-section, rated 450/750V, produced by Saudi Cable Company (SCC). The robust (PVC 85°C) insulation ensures exceptional resistance to heat and moisture, making it suitable for infrastructure and energy projects.
Product description
Stranded copper electrical single core wire (CU/PVC), rated 450/750V, manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 85°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: PVC Type 5 to BS:6746 Rated 85°C
- Voltage: 450/750 volts
- Conductor Size: 70 mm2
- Number of Wires: 19
- Insulation Thickness: 1.4 mm
- Overall Diameter: 13.8 mm
- Weight: 680 kg/km
- Length: 1000 meter/Drum
- Color: Yellow
- Specification: SASO:55
