50mm Stranded Copper NYA Wire, 1000V, PVC 90°C Insulation, green \ yellow, 100 Yards | RESCAB
(567 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

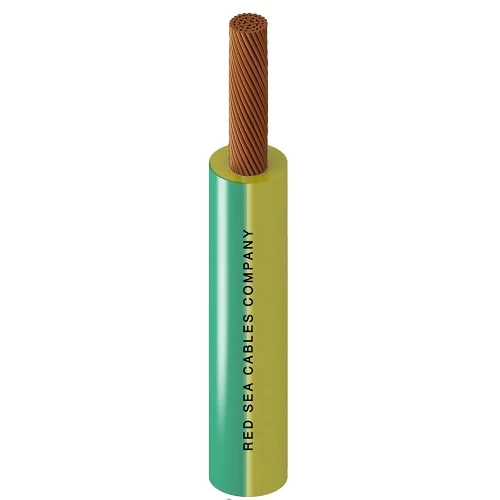

stranded copper wire (CU/PVC) a size of 50mm² and 1000 volts, produced by Red Sea Cables Company, is manufactured according to international and British standards to ensure quality, It is insulated with polyvinyl chloride (PVC 90°C), making it suitable for use in high voltage applications and providing reliable performance with good flexibility.
Product description
stranded copper wire by Red Sea Cables according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-R
- Conductor: Stranded Copper
- Insulation Material: PVC 90°C
- Voltage: up to 1000Vac or upto 750Vdc
- Conductor Size (Cross-Sectional Area): 50mm2
- No of Wires: 19
- Nominal Insulation Thickness:1.4mm
- Approx Overall Diameter: 11.4mm
- Maximum DC Resistance at 20°C: 0.387 ohm/km
- Current Carrying Capacity (PVC 90°C): 171 Ampere
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Insulation Color: green \ yellow
- Standards: IEC 60227, SASO 1320, BS 6004
