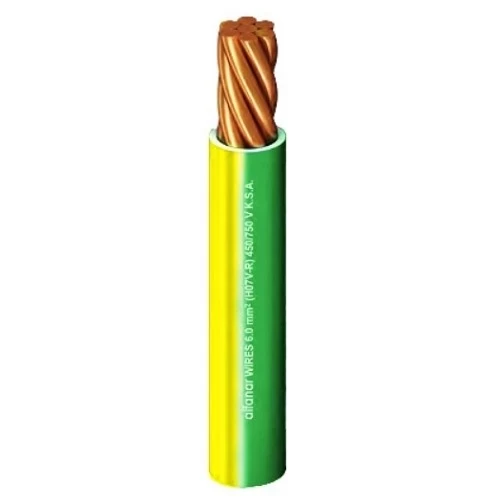

Electric Wire 6 mm 450/750V, Copper Conductor, Heat Resistant PVC Insulation | Alfanar
(583 Product Views)
6 mm stranded copper wire with heat-resistant PVC insulation, offers high protection against electrical leakage, shocks, and abrasion. Suitable for high-temperature environments. Yellow/Green color. Produced by Alfanar.
Product description
Stranded copper electrical heat resistant wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC 90 ºC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines, and instruments with higher operating temperatures, as well as in lighting networks and power systems. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: (PVC 90 ºC) Heat Resistant
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 6 mm²
- Number of Wires: 7
- Conductor Diameter: 1.04 mm
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 4.7 mm
- Weight: 71 kg/km
- Length: 300 feet on Coil (100 yards). Other lengths available on request
- Color: Yellow/Green
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
