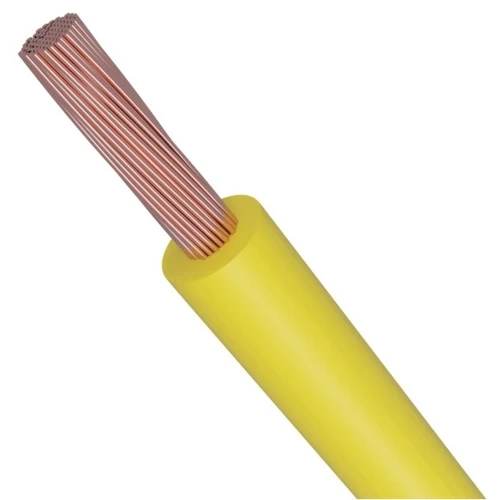

16 AWG Stranded Copper American Electrical Wire, PVC insulated (105°C), Yellow, 600V, 2500 feet Length | Asharqiyah Cables
(688 Product Views)
Stranded copper electrical American wire, 16 AWG conductor size, 600 Volts, 2500 feet Length. Insulated with polyvinyl chloride (PVC), providing high resistance to heat, humidity, and oils. Suitable for internal wiring in electrical appliances like air conditioners, washing machines, and refrigeration equipment. Yellow color by Asharqiyah Cables.
Product description
Stranded copper electrical American wire (AWM), manufactured by Asharqiyah Cables, complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Copper (Class C of ASTM)
- Insulation Material: (PVC 105°C) Heat Resistance
- Voltage: 600 volts
- Conductor Size (Cross-sectional area): 16 AWG
- No. of Wires: 19
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.05 mm
- Approx Weight: 25 kg/km
- Insulation Color: Yellow
- Standard Length: 2500 feet on a plastic spool or wooden drum
- Standards: UL-1015, UL 758, UL E505934
