CU/LS0H-XL Stranded Copper Wire, 2.5 mm2, 450/750V, brown Color, 1000 meter | BAHRA
(556 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

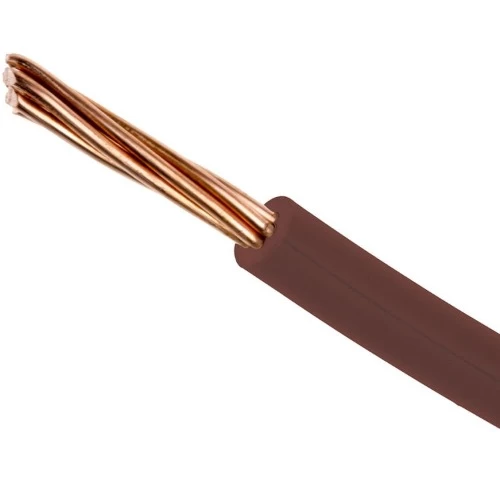

Stranded copper electrical wire (CU/LS0H-XL), 2.5 mm2 size conductor, 450/750 volts, produced by BAHRA Cables Company These wires are commonly used in applications that require high levels of safety and reliability, such as industrial, construction, and transportation sectors.
Product description
Stranded copper electrical wire (CU/LS0H-XL), conductor, 450/750 volts, produced by BAHRA Cables Company according to BS 7211 standard, Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. The insulation also is composed of a cross-linked polymer(XL), which enhances its resistance to heat, moisture, and ultraviolet radiation. These wires are commonly used in applications that require high levels of safety and reliability, such as industrial, construction, and transportation sectors, Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07 Z-R
- Conductor: Annwaled Stranded Copper Wires
- Insulation Material: LS0H-XL (Rated 90°C)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- No. of Wires x Nominal Wire Diameter: 7 x 0.672 mm
- Max DC Conductor Resistance at 20°C: 7.41 ohm/km
- Nominal Insulation Thickness: 0.8 mm
- Nominal Outer Diameter: 3.64 mm
- Current Caryying Capacity: 30 Amp
- Standard Length:1000 M/Drum
- Insulation Color: brown
- Standard: BS 7211
