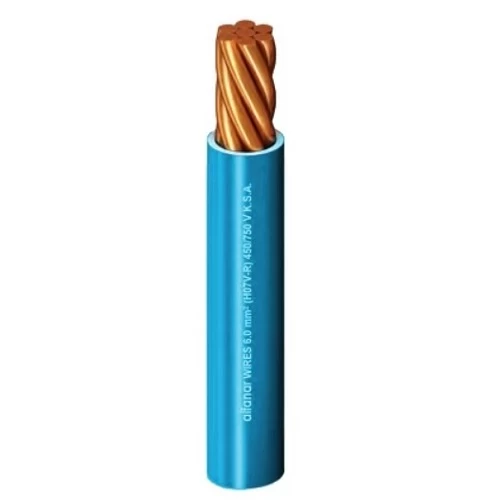

Stranded Copper Single Wire, Heat Resistant PVC Insulation, 10 sq mm Size, 450/750V | Alfanar
(621 Product Views)
Stranded copper electrical heat resistant wire (CU/PVC), 10 mm2 cross-sectional area, 450/750 volts, manufactured by Alfanar Company, available in various shapes and sizes in highest quality and best prices to suit different applications and needs, in accordance with the latest BS or IEC standards, color is blue.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Alfanar Company in accordance with the latest BS or IEC standards. Insulated with polyvinyl chloride (PVC 90 ºC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines and instruments with higher operating temperature, and in lighting networks, power systems. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: (PVC 90 ºC) Heat Resistant
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm
- Number of Wires: 7
- Conductor Diameter: 1.43 mm
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 5.7 mm
- Weight: 108 kg/km
- Length: 100 yards on Coil (Other lengths available on request)
- Color: Blue
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
