Copper Stranded Wire 95mm 450/750volts, Heat Resistant PVC Insulation | Alfanar
(807 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

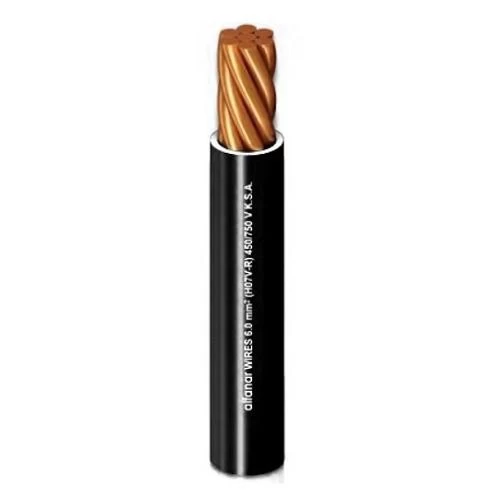

Copper Stranded Wire 95 mm2 , 450/750volts, heat resistant PVC insulation, phase core color black, insulated with polyvinyl chloride (PVC 90 ºC), where the insulation layer protects the wire from harmful UV rays from damaging the cable and it is also highly resistant to water and moisture, available in various shapes and sizes in highest quality and best prices, manufactured by Alfanar.
Product description
Stranded copper electrical heat resistant wire (CU/PVC), manufactured by Alfanar. Insulated with polyvinyl chloride (PVC 90 ºC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines and instruments with higher operating temperature, and in lighting networks, power systems. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: (PVC 90 ºC) Heat Resistant
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 95 mm2
- Number of Wires: 19
- Conductor Diameter: 2.66 mm
- Max DC Conductor Resistance at 20°C: 0.193 ohm/km
- Nominal Insulation Thickness: 1.6 mm
- Approx Overall Diameter: 14.5 mm
- Weight: 919 kg/km
- Length: 300 feet on Coil (100 yards). Other lengths available on request
- Color: Black
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
