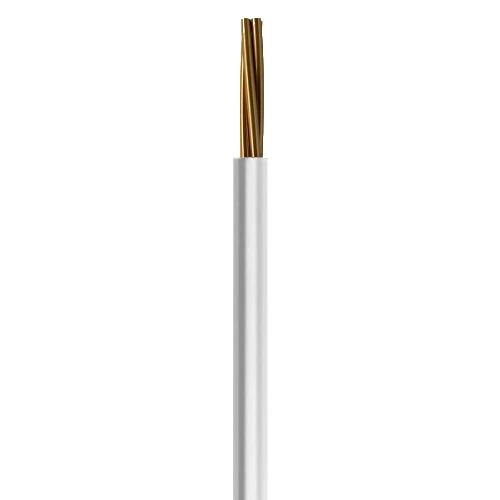

Stranded Electric Wire CU/PVC, 240mm2 Size, 450/750 Voltage Rating, White Color | Jeddah Cables

Electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Material: Copper
• Conductor Shape: Soft Annealed Stranded Wires
• Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 240 mm
• Nominal Insulation Thickness: 2.2 mm
• Approx Overall Diameter: 23 mm
• Weight: 2325 kg/km
• Max DC Conductor Resistance at 20°C: 0.0754 ohm/km
• Current Rating Laid in Conduits: 431 Ampere
• Current Rating Laid in Free Air: 650 Ampere
• Color: White
• Standard: IEC 60227
