95mm Stranded Electric Wire, 450/750V, Copper Conductor PVC 70°C Insulation, Blue Color | Asharqiyah Cables
(767 Product Views)

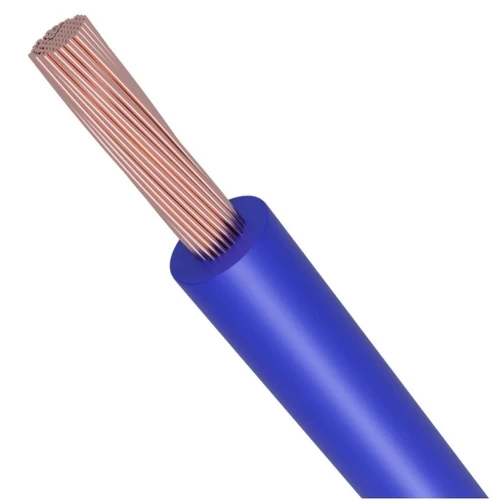

Stranded electrical wire coil 95 mm2 , 450/750 volts, copper conductor, blue color, insulated with polyvinyl chloride (PVC 70°C), which is characterized by its low cost, reliable performance and durability, from Asharqiyah Cables Company.
Product description
Stranded Copper Electrical Wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced in accordance with international quality and safety standards, PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: PVC (Polyvinyl Chloride) 70°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 95 mm2
- Nominal Insulation Thickness: 1.60 mm
- Approx Overall Diameter: 14.80 mm
- Weight: 930 kg/km
- Maximum DC Resistance at 20°C: ≤0.193 ohm/km
- Standard Length: 1000m drum
- Insulation Color: Blue
- Standards: IEC 60227-3, BS EN 50525-2-31
