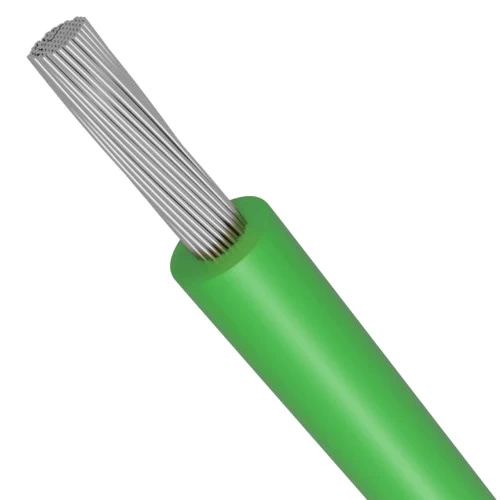

16 AWG 1C Stranded Tinned Copper Electrical Wire, 1000 volts, PVC Insulation (+105°C) Green, 2500ft | Asharqiyah Cables
(882 Product Views)
Stranded tinned copper electrical wire 16 AWG 1000 volts, PVC insulation (+105°C) green color, manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard.
Product description
Stranded tinned copper electrical american wire (AWM), manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Tinned Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 16 AWG
- No. of Wires: 19
- Classification Standards: Class C of ASTM
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.05 mm
- Approx Weight: 25 kg/km
- Insulation Color: Green
- Standard Length: 2500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
