Stranded Copper Single Core Wire, 150 sq mm, 450/750V Rated Voltage, PVC 85°C Insulated, Yellow Color, Length 1000 meter | Saudi Cable Company
(451 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

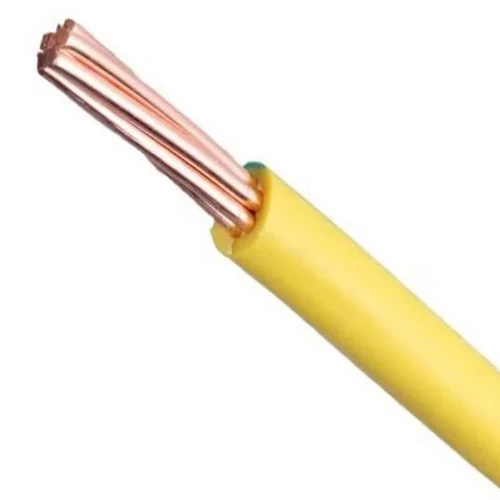

Stranded copper single core wire, 150 mm, 450/750V rated voltage, yellow Color, length 1000 meter, manufactured by Saudi Cable Company (SCC). The durable (PVC 85°C) insulation provides superior protection against environmental factors.
Product description
Stranded copper electrical single core wire (CU/PVC), rated 450/750V, manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 85°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: PVC Type 5 to BS:6746 Rated 85°C
- Voltage: 450/750 volts
- Conductor Size: 150 mm2
- Number of Wires: 37
- Insulation Thickness: 1.8 mm
- Overall Diameter: 19.7 mm
- Weight: 1400 kg/km
- Length: 1000 meter/Drum
- Color: Yellow
- Specification: SASO:55
