3 AWG 1C Stranded Tinned Copper Wire, 1000 volts, PVC Insulation (+105°C) Blue, 500 feet Length | Asharqiyah Cables
(677 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

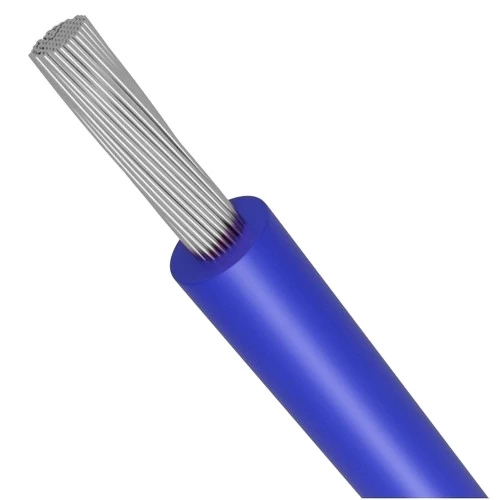

Stranded tinned copper electrical american wire (AWM), 3 AWG conductor size, 1000 volts, 500 feet length, it features PVC insulation with a blue color, manufactured by Asharqiyah Cables.
Product description
Stranded tinned copper electrical american wire (AWM), manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Tinned Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 3 AWG
- No. of Wires: 19
- Classification Standards: Class C of ASTM
- Nominal Insulation Thickness: 1.52 mm
- Approx Overall Diameter: 10.20 mm
- Approx Weight: 340 kg/km
- Insulation Color: Blue
- Standard Length: 500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
