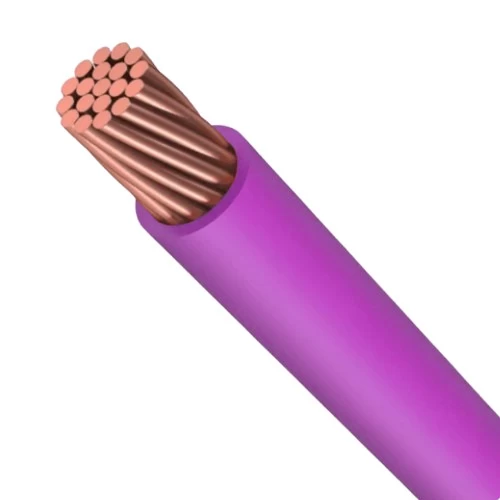

2 AWG Stranded Copper Electrical Wire (MTW), 600V, Violet Color, 500 feet Length | Asharqiyah Cables
(576 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded Copper Wire (MTW), 2 AWG, 600V, From Asharqiyah Cables Company, Violet color, It provides very high conductivity with strong insulation that ensures reliable performance in a wide range of electrical applications, and is characterized by its high quality and durability, making it an ideal choice for electrical projects that require the highest standards of safety and quality.
Product description
Single core stranded copper electrical wire (MTW), manufactured by Asharqiyah Cables, according to (UL 1063) standard. Insulated with polyvinyl chloride (PVC 90°C), providing high resistance to heat, moisture, oils, and chemicals. Suitable for dry locations at temperatures not exceeding 90°C, or 60°C in wet locations. Designed for internal wiring in electrical equipment, control panels, switchboards, and other electrical equipment applications. Available in various colors and sizes with highest quality and competitive prices to suit diverse applications and needs.
- Wire Type: MTW (Machine‐Tool Wires)
- Rated Temperature: 90℃ DRY, 60°C WET
- Conductor: Stranded Copper
- Insulation Material: PVC (90°C) Heat Resistance
- Voltage: Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area): 2 AWG
- No. of Wires: 19
- Nominal Insulation Thickness: 1.52 mm
- Approx Overall Diameter: 11.0 mm
- Approx Weight: 385 kg/km
- Insulation Color: Violet
- Standard Length: 500 feet/Spools
- Standards: UL 1063, (UL) E498220
