1 AWG Stranded Copper American Electrical Wire, PVC Insulation (105°C), Black, 600V, Length 500 feet | Asharqiyah Cables
(577 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

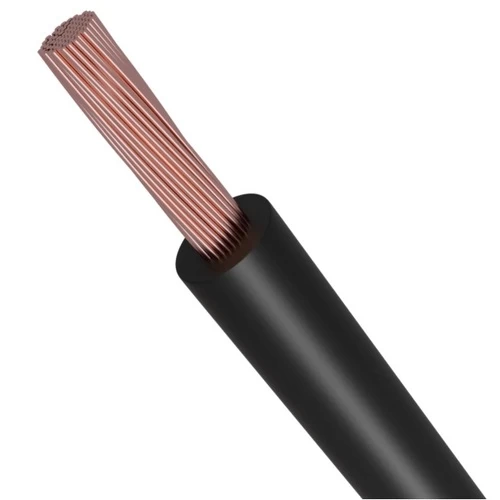

1 AWG Stranded Copper American Electrical Wire, 600 Volts, Length 500 feet, insulated with PVC providing strong protection against heat and humidity. Ideal for heavy-duty industrial applications. Black color by Asharqiyah Cables.
Product description
Stranded copper electrical American wire (AWM), manufactured by Asharqiyah Cables, complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Copper (Class C of ASTM)
- Insulation Material: (PVC 105°C) Heat Resistance
- Voltage: 600 volts
- Conductor Size (Cross-sectional area): 1 AWG
- No. of Wires: 19
- Nominal Insulation Thickness: 2.03 mm
- Approx Overall Diameter: 12.80 mm
- Approx Weight: 500 kg/km
- Insulation Color: Black
- Standard Length: 500 feet on a plastic spool or wooden drum
- Standards: UL-1015, UL 758, UL E505934
