Solid Copper Electrical Wire, 2.5mm2 Size Conductor, 450/750 Volts, Gray | Jeddah Cables
(670 Product Views)

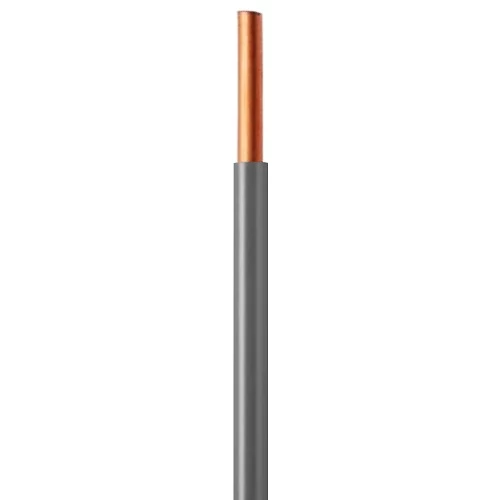

Solid Copper Electrical Wire, 2.5mm2 Size Conductor, 450/750 Volts, Insulated with Polyvinyl Chloride (PVC). Used for wiring circuits in household appliances and offices. Features strong insulation that protects the wire from various environmental factors. The color is gray, and it is manufactured by Jeddah Cables.
Product description
Solid copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor: Solid Copper
- Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 2.5 mm²
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 3.4 mm
- Weight: 35 kg/km
- Max DC Conductor Resistance at 20°C: 7.41 ohm/km
- Current Rating Laid in Conduits: 27 Ampere
- Current Rating Laid in Free Air: 38 Ampere
- Color: Gray
- Standard: IEC 60227
